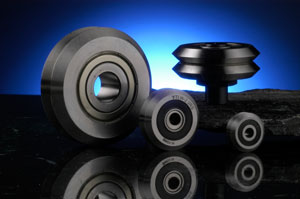

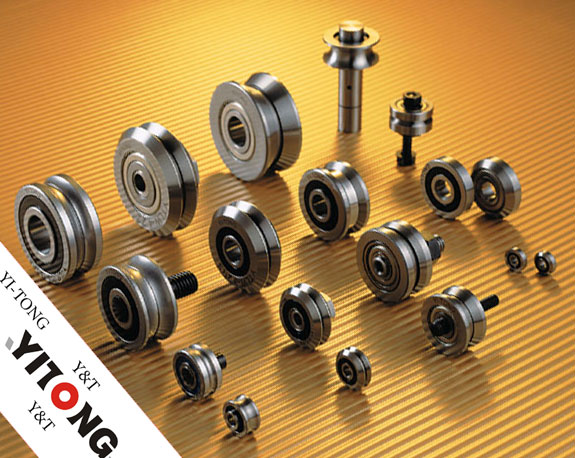

Track Rollers series W... W Guide Wheels, profiles "W" shaped groove with an angle of 90 degree in the outer diameter surface. They are applied to the guide rail with an angle of 90 degree on either the internal or external surface, and also used in round rail with shafts.


The specified pivots are available according to customer's specification.


Double-V Guide Wheels
Bearing No.     Weight Dimensions(mm) Load ratings
(g) d D B A1 A2 rs Cw Cow
D&D EURO               (KN) (KN)
YTG W1 RM1ZZ 12 4.763 19.56 7.87 7.93 11.86 0.3 2.2
1.0
YTG W1X RM12RS 12 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1.0
YTG W2 RM2ZZ 40 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5
YTG W2X RM22RS 40 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5
YTG W3 RM3ZZ 136 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9
YTG W3X RM32RS 136 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9
YTG W4 RM4ZZ 285 15 59.94 19.05 25.4 34.93 1 14.8 8.2
YTG W4X RM42RS 285 15 59.94 19.05 25.4 34.93 1 14.8 8.2

Authorized by Yitong Industry
