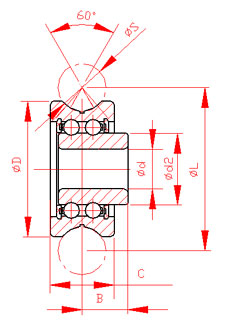

Track Rollers series SG...

profiled track rollers,Gothic arch,double row, rubber seals on both sides.

SG series for high speed LM guide system
Yoke type track rollers
Bearing No.

Weight

(g)

Dimensions(mm)
Load ratings
Cw Cow
D&D
KOREA
S d D C B L d2 (KN) (KN)
SG15  SG BR-15 8 6 5 17 8 5.75 20.46 8.6 1.8 0.95
SG15-10   9 10 5 17 8 5.75 25.5 8.6 1.8

0.95

SG20  SG BR-20 25 8 6 24 11 7.25 28.62 11.1 3.48 1.75
SG25  SG BR-25 49 10 8 30 14 8.5 35.77 13 5.18 2.7
SG35  SG BR-35 136 12 12 42 19 12.5 48.93 18 10.6 5.9
