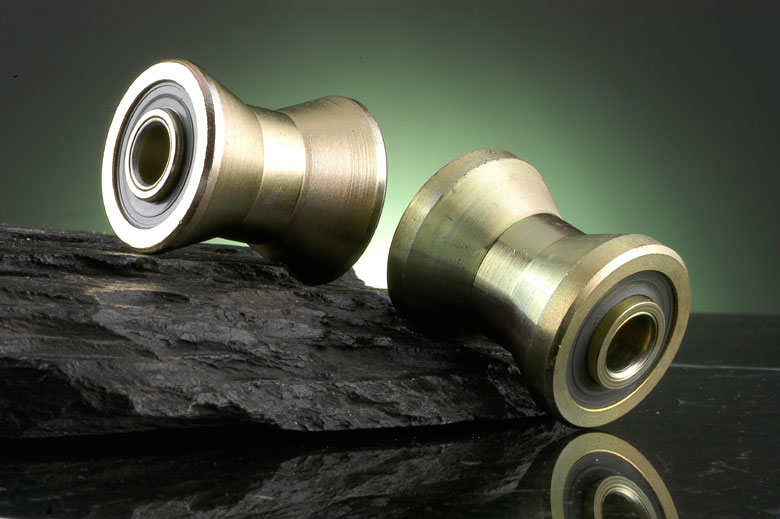

Track Rollers series YTA... are the Diabolo Bearings. The rollers are special arranged in the meat hooks that running on the Tubular Track Raill in the Abattoirs slaughterhouse. These rollers feature to accept high loads and to have long lifetime. The rollers have different hardness in profile surface and internal structure so that the rails are prevented from wear in operation. These rollers are supplied grease filled and can run in range of minus 40℃ to plus 180℃ with waterproof & anti-washing grease.
Track Rollers series YTA - Bearings for Abattoirs
Bearing No. Dimension(mm)
d D D1 B L L1 a
YTA100 10 35 24 34 36   5
YTA101 12 40 28 45 47 10 23.2
YTA201 12 40 28 47.5 52 10 26
YTA200 10 36 24 34 36
Track Rollers series YTA - Bearings for Abattoirs
