Track
Rollers series YTM...
are
made of high quality chromium steel. These track rollers feature a thicker-walled
outer ring and to enable rollers to accept higher radial forces, including
shock loads. They are extensively applied to forklift mast and lifting
machinery's guide track etc. |

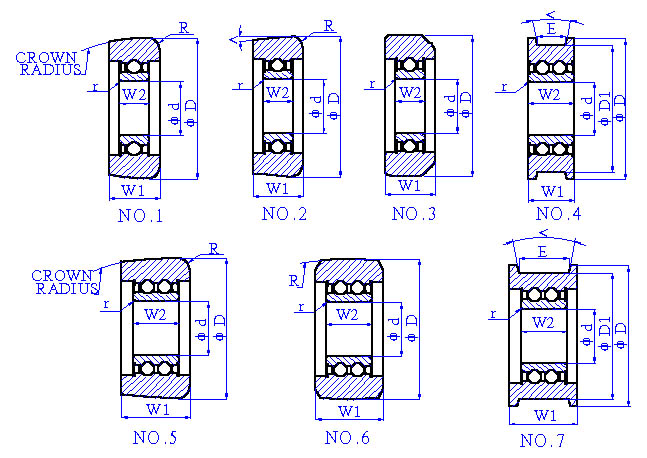

Bearing No. | Dimension(mm) |
|||||||||
d | D | D1 | W2 | W1 | R | r | E | < | STYLE | |
YTM205A | 25 | 76.2 | - | 17 | 25.4 | 6.35 | 1 | - | - | NO.1 |
YTM207A | 35 | 91.92 | - | 19.96 | 31.88 | 7.87 | 1 | - | - | NO.1 |
YTM307A | 35 | 111.07 | - | 19.96 | 30.28 | 7.87 | 1 | - | - | NO.1 |
YTM205B | 25 | 82 | - | 15 | 25 | 6.35 | 1 | - | 9 | NO.2 |
YTM206B | 28 | 77.5 | - | 18 | 28 | 6.35 | 1 | - | 9 | NO.2 |
YTM208B | 40 | 101.6 | - | 23 | 28.58 | 9.525 | 1.5 | - | 9 | NO.2 |
YTM207C | 35 | 101.4 | - | 21 | 28.6 | - | 1 | - | - | NO.3 |
YTM308D | 40 | 95.5 | 89 | 30.3 | 38.1 | - | 1 | 28.6 | 20 | NO.4 |
YTM209D | 45 | 120.3 | 113.8 | 54.5 | 51.28 | - | 1 | 44.3 | 20 | NO.4 |
YTM309D | 45 | 120.3 | 113.8 | 66.3 | 62.3 | - | 1 | 56.3 | 20 | NO.4 |
YTM206E | 30 | 70.1 | - | 23.8 | 27 | 610 | - | - | - | NO.6 |
YTM306E | 30 | 70.6 | - | 23.8 | 27 | 610 | - | - | - | NO.6 |
YTM308F | 40 | 126.75 | - | 30.1 | 42.87 | 7.87 | 2 | - | - | NO.5 |
YTM206G | 30 | 73 | 66.5 | 23.8 | 29 | - | - | 19 | 20 | NO.7 |
