Track Rollers series LV...

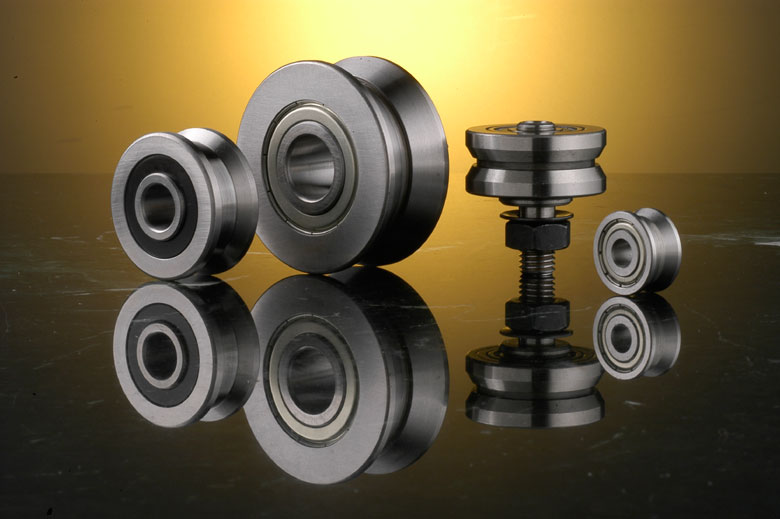

Vee'd Bearings, profiles Vee-shaped groove with an angle of 120 degree in the outer diameter surface. They are applied to round rail with shafts.
The specified pivots are available according to customer's specification.

Vee'd Bearings

Vee'd Bearings
Bearing No. Weight
Dimensions(mm)
Load ratings
D&D EURO (g) dw d D C A r Cw Cow
            min (KN) (KN)
LV 20/7 RV 20/7-10 17 10 7 22 11 14.5 0.3 2.45 1.62
LV 20/8 RV 20/8-10 62 10 8 30 14 18.1 0.3 4.49 2.7
LV 202-38 RV 202/15.38-10 86 10 15 38 17 22.25 0.5 7.29 4.55
LV 202-40 RV 202/15.40-10 110 10 15 40 18 22 0.5 7.95 4.95
LV 201 RV 201/12-20 130 20 12 41 20 28 0.3 8.18 5.1
LV 202-41 RV 202/15.41-20 120 20 15 41 20 28 0.5 8.18 5.1
LV 203 RV 203/17 325 20 17 58 25 35 0.5 16.58 9.2
LV 204-57
RV 204/20.57-30
290 30 20 57 22 41 0.6 16.91 9.2
LV 204-58 RV 204/20.58-30 310 30 20 58 25 41 0.6 16.79 9.2
