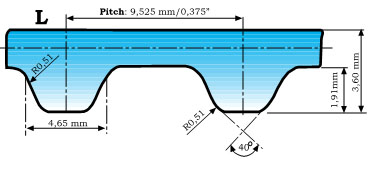

L Pitch Synchronous Belts
Width of L Pitch Synchronous Belts :
050(1/2¨)-075(3/4¨)-100(1¨)-150(11/2¨)-200(2¨)-300(3¨)
Any custom Width available
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
67
L
171,45
6,75
18
100
L
257,18
10,13
27
109
L
276,86
10,9
29
113
L
285,75
11,25
30
120
L
304,80
12
32
124
L
314,96
12,4
33
130
L
333,38
13,13
35
135
L
342,90
13,5
36
143
L
361,95
14,25
38
150
L
381,00
15
40
154
L
390,63
15,38
41
158
L
400,05
15,75
42
161
L
409,58
16,13
43
165
L
419,10
16,5
44
169
L
428,63
16,88
45
173
L
438,15
17,25
46
176
L
447,04
17,6
47
180
L
457,20
18
48
185
L
466,73
18,38
49
187
L
476,25
18,75
50
191
L
485,78
19,13
51
195
L
495,30
19,5
52
200
L
504,83
19,88
53
203
L
514,35
20,25
54
210
L
533,40
21
56
217
L
552,45
21,75
58
220
L
561,98
22,13
59
225
L
571,50
22,5
60
230
L
581,03
22,88
61
233
L
590,55
23,25
62
236
L
600,08
23,63
63
240
L
609,60
24
64
244
L
619,13
24,38
65
248
L
628,65
24,75
66
255
L
647,70
25,5
68
258
L
655,32
25,8
69
263
L
666,75
26,25
70
270
L
685,80
27
72
275
L
695,33
27,38
73
277
L
704,85
27,75
74
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
280
L
714,38
28,13
75
285
L
723,90
28,5
76
300
L
762,00
30
80
315
L
800,10
31,5
81
320
L
809,63
31,88
84
322
L
819,15
32,25
85
326
L
828,68
32,63
86
330
L
838,20
33
87
334
L
847,73
33,38
88
337
L
857,25
33,75
89
341
L
866,78
34,13
90
345
L
876,30
34,5
91
352
L
895,35
35,25
92
356
L
904,88
35,63
94
360
L
914,40
36
95
367
L
933,45
36,75
96
375
L
952,50
37,5
98
382
L
971,55
38,25
100
387
L
981,08
38,63
102
390
L
990,60
39
103
394
L
1000,13
39,38
104
397
L
1009,65
39,75
105
400
L
1019,18
40,13
106
405
L
1028,70
40,5
107
408
L
1036,23
40,8
108
412
L
1047,75
41,25
109
420
L
1066,80
42
110
427
L
1085,85
42,75
112
435
L
1104,90
43,5
114
439
L
1114,43
43,88
116
442
L
1123,95
44,25
117
446
L
1133,48
44,63
118
450
L
1143,00
45
119
454
L
1153,16
45,4
120
465
L
1181,10
46,5
121
480
L
1219,20
48
124
495
L
1257,30
49,5
128
500
L
1266,83
49,88
132
510
L
1295,40
51
133
525
L
1333,50
52,5
140
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
540
L
1371,60
54
144
548
L
1390,65
54,75
146
555
L
1409,70
55,5
148
570
L
1447,80
57
152
754
L
1457,33
57,38
153
581
L
1476,38
58,13
155
585
L
1485,90
58,5
156
600
L
1524,00
60
160
615
L
1562,10
61,5
164
619
L
1571,63
61,88
165
630
L
1600,20
63
168
660
L
1676,40
66
176
694
L
1762,13
69,38
185
697
L
1771,65
69,75
186
712
L
1809,75
71,25
190
720
L
1828,80
72
192
728
L
1847,85
72,75
194
731
L
1857,39
73,13
195
739
L
1876,43
73,88
197
750
L
1905,00
75
200
765
L
1943,10
76,5
204
788
L
2000,25
78,75
210
817
L
2076,45
81,75
218
863
L
2190,73
86,25
230
881
L
2238,38
88,13
235
890
L
2257,43
88,88
237
1028
L
2609,85
102,75
274
1148
L
2914,65
114,75
306
1192
L
3028,95
119,25
318
1418
L
3600,45
141,75
378
1988
L
5048,25
198,75
530
