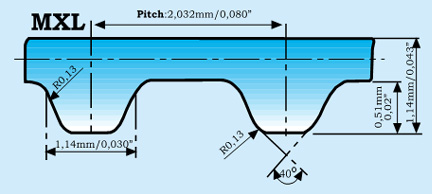

Width of MXL Pitch Synchronous Belts:
*012(1/8”)-016(3/16”)-025(1/4”)-031(5/16”)
* Any Custom Width available,
* Complete sleeves available (ask for width)
* Open end (long lenght) in rolls available in 10-15-25 mm

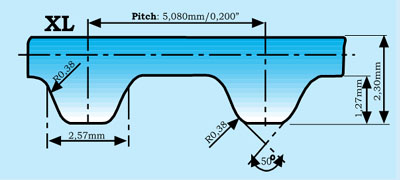

Width of XL Pitch Synchronous Belts:
*025(1/4") - 031 (5/16") - 037(3/8") - 050(1/2") - 075 (3/4"")-100 (1")
* Any Custom Width avaible,
* Complete sleeves available (ask for width)
Open end (long lenght) in roools available in 10-15-25 mm

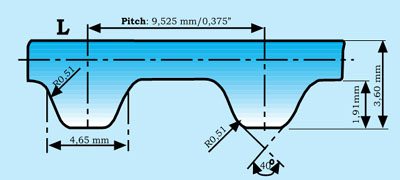

Sample size: 300 L 100
300-30" (762 mm) P. Lenght
L - Pitch
100 - 1" (25,4 mm) Width
Width of XL Pitch Synchronous Belts:
*050 (1/2"=-075(384") - 100(1") - 150 (1 1/2") - 200 (2") - 300 (3")
* Any Custom Width avaible,
* Complete sleeves available (ask for width)
Open end (long lenght) in roools available in 10-15-25 mm

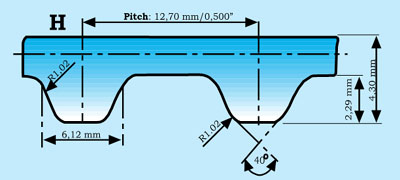

Sample size: 600 H 300
600 - 60" (1524 mm) P. Length
H-Pitchh
300 - 3" (76,20 mm) Width
Width of XL Pitch Synchronous Belts:
*075(3/4") - 100 (1" 1/2")- 200 (2") - 300 (3")-400 (4") - 500 (5")
* Any Custom Width avaible,
* Complete sleeves available (ask for width)
Open end (long lenght) in roools available in 10-15-25 mm
