TIMING BELTS > DOUBLE SYNCHRONOUS BELTS > DXH Pitch Synchronous Belts
BACK

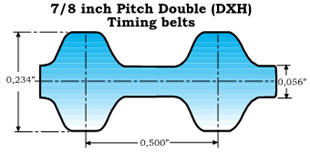

DXH Pitch Synchronous Belts
DXH Pitch Double timing Belts are Available as:
200(2") - 300(3") - 400(4") widths and,
Any widths of customers requests and,
Complete sleeves, (ask for sleeve width of each individual length)
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
507
XH
1289,05
50,75
58
534
XH
1355,73
53,38
61
560
XH
1422,40
56
64
570
XH
1447,63
56,99
65
580
XH
1466,85
57,75
66
586
XH
1489,08
58,63
67
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
630
XH
1778,00
63
648
XH
1866,90
64,8
700
XH
1911,35
70
770
XH
1955,80
77
840
XH
2022,48
84
Belt No
PITCH LENGTH (mm)
PITCH LENGTH (in)
Teeth No.
980
XH
2533,65
99,75
114
1120
XH
2844,80
112
128
1260
XH
3200,40
126
144
1400
XH
3556,00
140
160
1540
XH
3911,60
154
176
